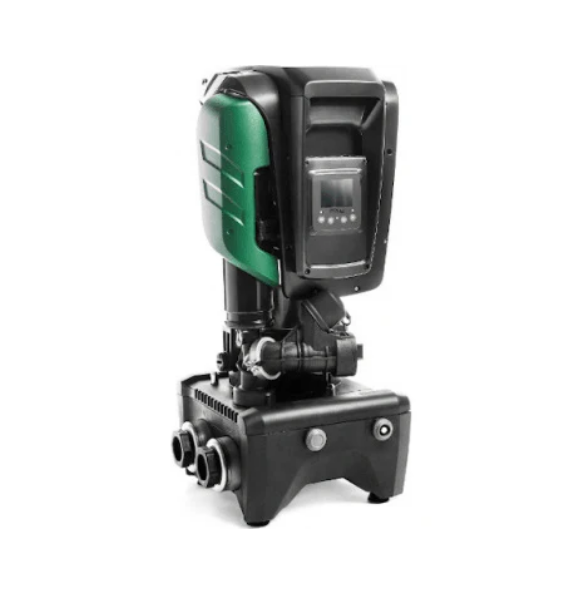

The Esybox Max is an integrated pumping system designed for water pressurization in commercial building services. Composed of modular elements, it allows for various configurations—single, double, triple, or quadruple systems—making it ideal for medium/large condominiums and high-rise buildings with over 14 floors.

Each unit consists of a hydraulic connection base and a pumping unit, which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery, and an expansion tank. The innovative support base and wireless communication between pumps enable easy, on-site assembly (O.S.A. concept) even by a single person.

The variable frequency drive maintains constant pressure according to demand. The water-cooled permanent magnet motor enhances efficiency, reduces noise, and supports energy savings. The system is also compatible with the DConnect service for smart monitoring.

Specifications:

• Flow Rate: Up to 17.4 m³/h (for a single unit)
• Head: 113 m
• Type of Pumped Liquid: Clean, free from solids, non-viscous, non-aggressive, non-crystallized, chemically neutral
• Liquid Temperature: Up to +50°C
• Maximum Ambient Temperature: Up to +55°C
• Maximum Inlet Pressure: 5 bar
• Operation Pressure: 12 bar / 1200 kPa
• Constant Pressure Range: 1-12 bar (3 bar by default)
• Motor Protection Class: IP X5
• Motor Insulation Class: F
• Impeller Material: Technopolymer
• Single Phase Power Input: 208-240V, 50/60Hz
• Three Phase Power Input: 380-480V, 50/60Hz
• Type of Installation: Fixed in vertical position
• Certification: WRAS, ACS, NSF61 (pending approval)

The Esybox Max offers an advanced, efficient, and scalable solution for water pressurization in demanding commercial environments.
